How Many Downpipes Do I Need for My Roof in Sydney? (2025 Guide)

The Quick Answer: Downpipe Calculation for Sydney Roofs

Most Sydney homes need one downpipe for every 20–30 square metres of roof area, but the real answer depends on your roof pitch, gutter size, and how hard it rains in your suburb. Get this wrong and you'll see gutter overflow during summer storms — and that means water pooling against your foundations, eroded gardens, and potential structural damage over time.

At Crown Roofers (NSW Lic. 471250C), we calculate downpipe requirements for every re-roof and gutter replacement across Greater Sydney and Wollongong. Here's how to work out whether your roof has enough downpipes — and what to do if it doesn't.

Why Downpipe Sizing Matters in Sydney

Sydney gets intense rainfall events: 50–100mm in an hour isn't unusual during summer storms, and coastal suburbs like Bondi or Maroubra can see even heavier downpours. Your gutters collect that water, but downpipes are the bottleneck — if you don't have enough capacity, water backs up, overflows, and cascades down your walls.

Common problems from undersized downpipe systems:

• Gutter overflow staining brickwork and fascia boards
• Foundation erosion from concentrated water discharge
• Mould and damp inside wall cavities
• Landscape washout around garden beds
• Rusted gutter floors from standing water

Adding one or two extra downpipes during a re-roof typically costs $180–$350 each installed, but prevents thousands in water damage repairs later.

The Standard Calculation: Roof Area ÷ Downpipe Capacity

Australian Standard AS/NZS 3500.3 provides the formula, but here's the simplified version for Sydney homeowners:

Step 1: Measure your roof catchment area

Multiply roof length × width × pitch factor. For a standard 4/12 pitch (common in Sydney), the factor is ~1.05. A 10m × 8m section = 84m² catchment.

Step 2: Check your rainfall intensity

Sydney's design intensity is typically 150mm/hour for a 1-in-20-year storm. Coastal areas use 175mm/hour.

Step 3: Match downpipe size to capacity

Standard 90mm round downpipes handle ~25–30m² per downpipe. Larger 100mm square downpipes (common on two-storey homes) handle ~35–40m².

Example: A single-storey Parramatta home with 120m² roof area and standard 90mm downpipes needs 4 downpipes minimum (120 ÷ 30 = 4). Many older homes only have 2–3, which is why you see overflow during heavy rain.

When You Need More Downpipes Than the Formula Says

The standard calculation assumes ideal conditions. Add extra downpipes if:

• Your roof has valleys or complex angles that concentrate water into one gutter section
• You're in a high-rainfall zone (Northern Beaches, Upper North Shore, Wollongong)
• Your gutters are undersized — if you've got old 100mm half-round gutters, they fill faster than modern Quad or SlimLine profiles
• You have long gutter runs — anything over 15 metres should have downpipes at both ends plus one mid-run
• Large trees overhang your roof — leaf litter clogs gutter capacity by 20–40%

We regularly add 1–2 downpipes during Colorbond re-roofs in suburbs like Castle Hill or Hornsby, where homes sit under heavy eucalypt canopy.

Downpipe Sizing Options: 90mm vs 100mm

90mm round downpipes (standard)

Capacity: ~25m² per downpipe

Best for: Single-storey homes, short gutter runs

Cost: $180–$250 installed in Colorbond

100mm square/rectangular downpipes (commercial-grade)

Capacity: ~35–40m² per downpipe

Best for: Two-storey homes, large roof areas, coastal exposure

Cost: $280–$350 installed in Colorbond or Zincalume

For heritage homes in suburbs like Mosman or Woollahra, we also install traditional cast iron or copper downpipes to match character features — expect $450–$800 per downpipe for these.

Where to Position Downpipes for Best Performance

Corners first: Place downpipes at external corners where two gutter runs meet — this halves the effective gutter length and doubles capacity.

Avoid long runs: If one side of your roof is 18+ metres, add a mid-run downpipe. Water travelling more than 10 metres in a gutter loses flow velocity and backs up.

Direct away from foundations: Downpipes should discharge at least 1.5 metres from your slab edge, ideally into stormwater drains or retention tanks. Many older Sydney homes dump straight onto paving or garden beds — that's a recipe for foundation movement.

Check Council requirements: Some Sydney councils (especially in bushfire-prone areas like Ku-ring-gai) require ember guards on downpipes. If you're connecting to street stormwater, you'll need approval under Section 68 of the Local Government Act.

Signs You Don't Have Enough Downpipes

You need to add downpipes if you see:

• Water cascading over gutter edges during moderate rain
• Rust stains inside gutters from chronic standing water
• Erosion channels in your garden below gutter lines
• Damp patches on internal walls after storms
• Sagging gutters from water weight overload

We offer free gutter inspections across Greater Sydney — call 0480 086 787 to book. We'll measure your roof, check gutter fall, and calculate exact downpipe requirements. Most gutter upgrades are completed in one day with minimal disruption.

Downpipe Installation: What to Expect

Adding downpipes during a re-roof is straightforward — we cut the new gutter, fit the outlet, and run Colorbond downpipes to ground level. If you're retrofitting downpipes to an existing roof:

Timeline: 2–4 hours per downpipe

Cost: $180–$350 per downpipe including outlet, brackets, and disposal connection

Materials: Colorbond (matches roof colour), Zincalume (coastal), or PVC (budget option, not recommended)

Critical step: We always check sub-floor drainage. There's no point adding downpipes if the water has nowhere to go — we can connect to Council stormwater, install ag-drains, or set up rainwater tanks if you're in a water-sensitive area.

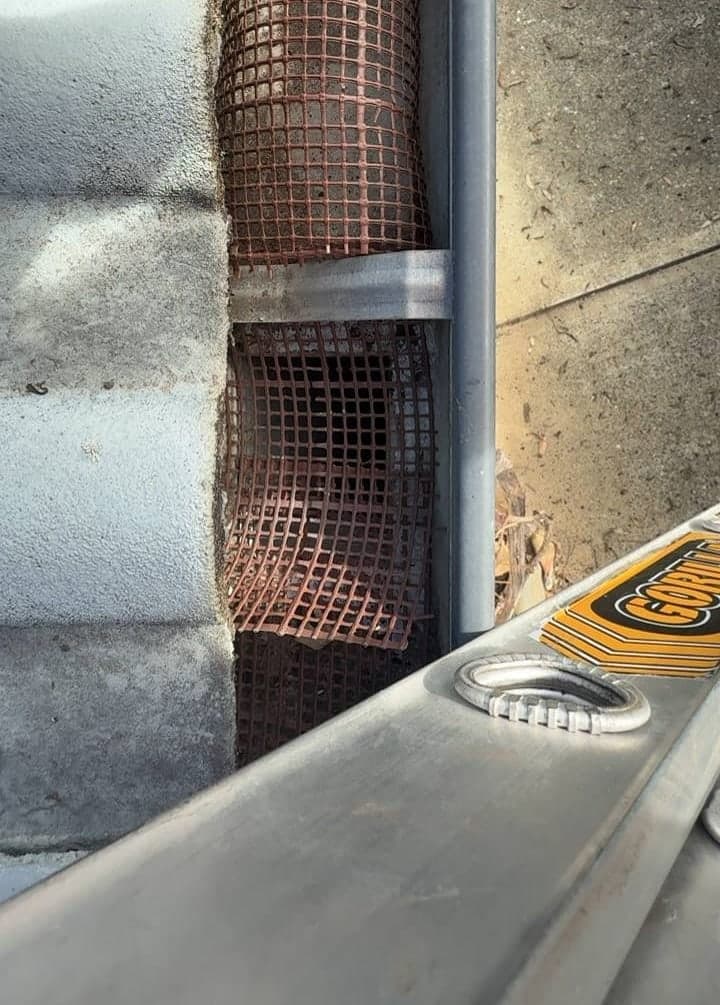

Maintenance: Keeping Downpipes Clear

Even perfectly sized downpipes fail if they're clogged. In Sydney's leafy suburbs (Turramanga, Lindfield, Beecroft), we recommend:

• Gutter cleaning twice yearly (autumn + spring)
• Leaf guards on valley gutters and high-leaf zones
• Downpipe strainers at every outlet (stops debris entering pipes)
• Annual flush-through with a hose to clear sediment

Blocked downpipes are the #1 cause of gutter overflow we see during emergency storm callouts. A $200 gutter clean prevents a $4,000 ceiling water damage repair.

When to Upgrade Your Entire Gutter System

If your home was built before 2000 and still has original gutters, you may need more than just extra downpipes. Signs it's time for a full gutter replacement:

• Undersized gutters (old 100mm half-round can't handle modern roof areas)
• Rust or corrosion at joints and downpipe outlets
• Incorrect fall causing water to pool
• Structural sagging that can't be corrected with re-brackets

A full gutter replacement on a standard single-storey Sydney home runs $2,200–$4,500 depending on perimeter length and material choice. We install Colorbond Quad (the most popular), SlimLine (modern architectural), or custom Zinc/Copper for heritage properties.

Get a Free Downpipe Assessment from Crown Roofers

Unsure whether your roof has enough downpipes? We'll measure your roof area, check your gutter system, and provide a written quote with no pressure to proceed. Crown Roofers holds NSW Contractor Licence 471250C and $20M public liability — every installation includes a 10-year workmanship guarantee.

We service all Greater Sydney suburbs plus Wollongong, from Bondi to Blacktown, Cronulla to Castle Hill. Call 0480 086 787 or visit crownroofers.com.au to book your free assessment. Most downpipe upgrades are completed same-week, and we clean up spotlessly — you won't even know we were there.
